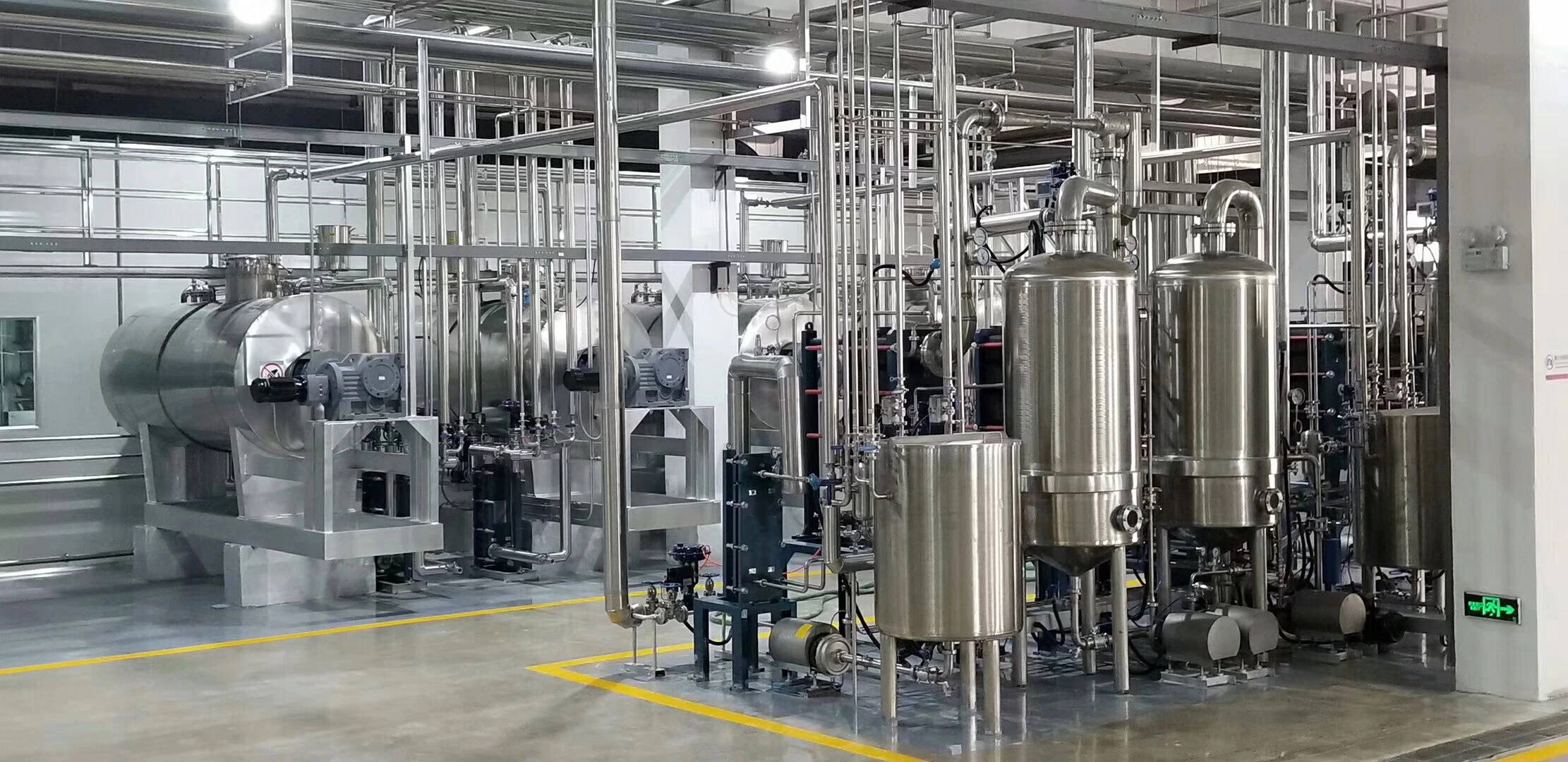

Multi Effect Plate Type + TVR Evaporator

• Location: Shandong, China
• Medium: Gluconate Endolipid
• Evaporator Style: Three Effect TVR Plate + Tube
• Evaporation Capacity: 10T/H
• Production: 85% Concerntration
• Main Material: SS316L

Technical Feature

The secondary steam of the front stage evaporator is pumped back by the jet heat pump TVR, and a part of the steam is used as the heating steam of the front stage evaporator together with the power steam. The use of the heat pump and the recycling of some secondary steam further reduces the consumption of fresh steam, which is equivalent to increasing the energy saving effect of 0.5 to 3 Effects (the effect depends on the injection coefficient and injection position of TVR )

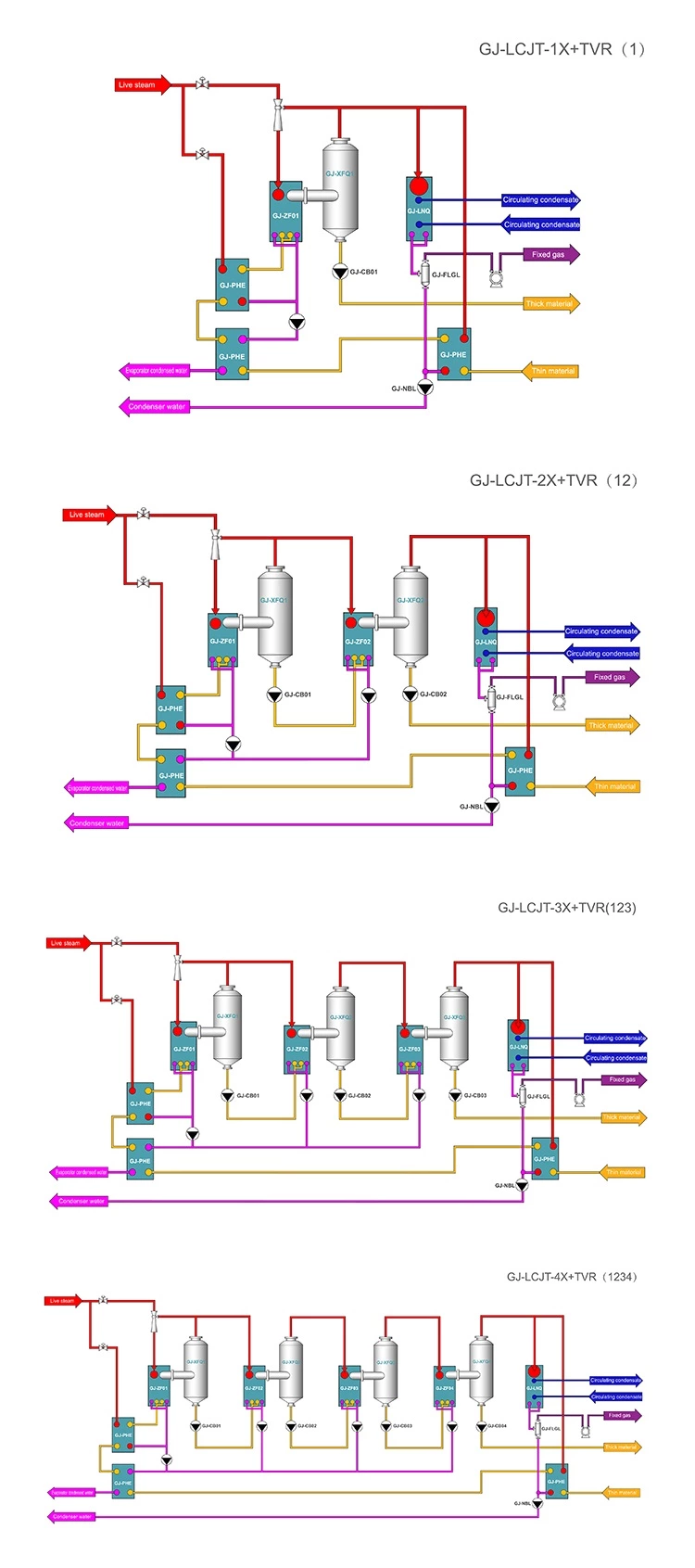

Some Classical Processes
